Custom Manufacturing of 95 Ton Steel Mill Ladles & 200 Ton Ladle Bails

200 Ton Capacity Ladle Bail - 95 Ton Steel Mill Ladle - Signal Design and Build - Testing
200 Ton Capacity Ladle Bail - 95 Ton Steel Mill Ladle - Signal Design and Build - Testing

At Signal Metal Industries, Inc., we've been designing and manufacturing heavy equipment for steel mills for over 30 years. Backed by a wide range of in-house capabilities, we can help customers compress their time and costs on projects of virtually any size and scope. We develop solutions that are carefully engineered and validated to ensure seamless integration. We have the capability to build multiple pieces simultaneously and specialize in equipment for steel mill applications.

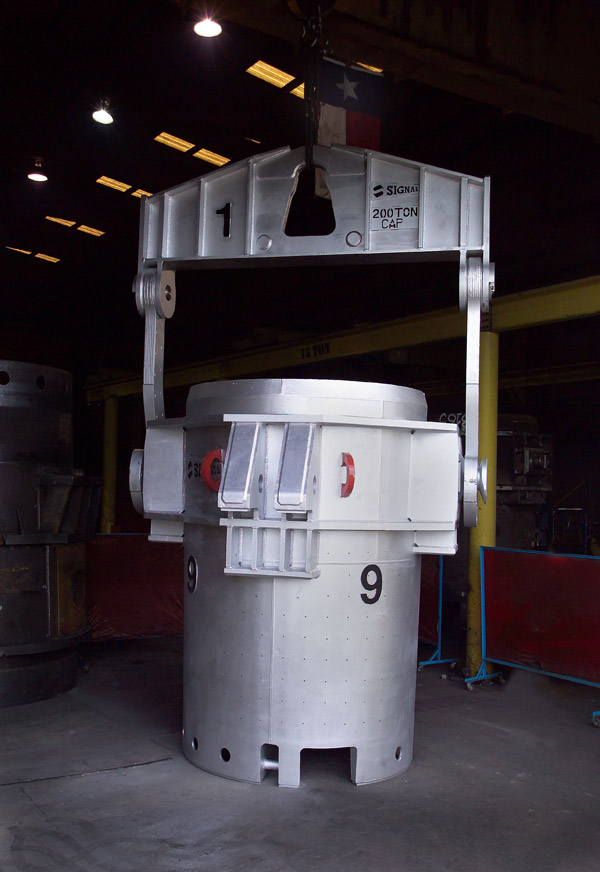

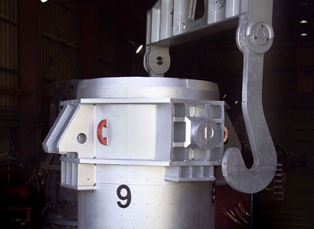

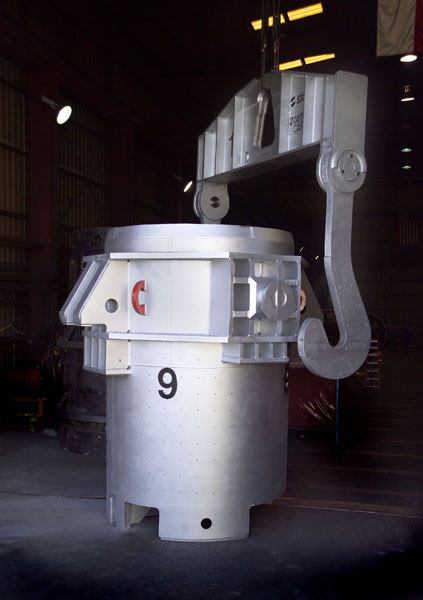

In the project highlighted here, a steel mill customer in Ohio requested a total of eight 95 ton ladles and two 200 ton lifting bail assemblies. Maximum dimensions for this project came in at 15' x 15' x 15' with tolerances as tight as + 0.001". Each 55,000 lb. ladle was made from specialized materials including A204 Gr B, A516-70, A36, A668 forgings, and 4140 round bar. We leveraged a full range of our core competencies, resources, and equipment to get the job done. This included engineering & design as well as complete fabrication that included plasma cutting, plate rolling, press brake forming, sub-arc welding, CNC milling and boring, thermal stress relieving, testing, and coating. Each finished ladle and bail underwent a comprehensive dimensional inspection using our FARO CMM laser tracker. We also utilized non-destructive testing (UT and MT) to evaluate each unit and ensure that they fully meet the design intent.

It was vital that these units were fabricated to be precisely compatible with their existing steel mill operation. Our customer was extremely pleased with our results, and they continue to order both hot metal ladles and lifting bails as required. We stood by our guarantees throughout the entire process, resulting in a long-term partner who repeatedly comes back to us with new opportunities. For more information on our manufacturing capabilities for steel mill ladles and bails, please refer to the table below or contact us directly.

Request Quote

95 Ton Ladles & 200 Ton Ladle Bails Project Highlights

Project Description
95 Ton Steel Mill Hot Metal Ladle and 200 Ton Lifting Bail
Capabilities Applied/Processes
  • Engineering / Design
  • Flame / Plasma Cutting
  • Steel Processing
  • Press Braking
  • Plate Rolling
  • Steel Fabrication
  • Sub-Arc Welding
  • Certified Welders
  • CNC Machining
  • FARO Laser Inspection
  • Large Conventional Machining
  • Thermal Stress Relieving
  • Coating
Equipment Used to Manufacture Part
  • Flame Cutting
  • Plasma Cutting
  • Plate Rolling
  • Press Braking
  • Large Conventional Boring Mill
  • CNC Boring Mills
  • CNC Lathes
  • Conventional Lathes
  • FARO Laser Tracker
  • Sub-Arc Welding Stations
  • Thermal Stress Relief Oven
  • Coating Facility
Overall Part Dimensions
  • 15' Width x 15' Height x 15' Length
  • 55,000 lbs.
Tightest Tolerances
Material Used
A204 Gr B, A516-70, A36, A668 Forgings, 4140 Round Bar
Industry for Use
Steel Mill
In Process Testing/Inspection Performed
Inspection per Router Steps, NDT, Dimensional, Thermal Stress Relieving Chart
Eight (8) Ladles & Two (2) Lifting Bail Assemblies
Delivery/Turnaround Time
Sixteen (16) to Twenty-Four (24) Weeks A.R.O.
Delivery Location
Ohio, USA
Standards Met
